Chapter 1: Fields and Views

In the previous chapter, we learned a range of skills, including how to create and use services, work with the Layout component, make the dashboard translatable, and lazy load a JavaScript library like Chart.js. Now, let's learn how to create new fields and views.

Solutions

The solutions for each exercise of the chapter are hosted on the official Odoo tutorials repository. It is recommended not to look at them before trying the exercises.

Fields and views are among the most important concepts in the Odoo user interface. They are key to many important user interactions, and should therefore work perfectly. In the context of the JavaScript framework, fields are components specialized for visualizing/editing a specific field for a given record. For example, a (Python) model may define a char field, which will be represented by a field component CharField.

A field component is basically just a component registered in the fields registry. The field component may define some additional static keys (metadata), such as displayName or supportedTypes, and the most important one: extractProps, which prepare the base props received by the CharField.

Example: a simple field

Let us discuss a simplified implementation of a CharField. First, here is the template:

<t t-name="web.CharField" owl="1">
    <t t-if="props.readonly">
        <span t-esc="formattedValue" />
    </t>
    <t t-else="">
        <input
            class="o_input"
            t-att-type="props.isPassword ? 'password' : 'text'"
            t-att-placeholder="props.placeholder"
            t-on-change="updateValue"
        />
    </t>
</t>

It features a readonly mode and an edit mode, which is an input with a few attributes. Now, here is the JavaScript code:

export class CharField extends Component {
    get formattedValue() {
        return formatChar(this.props.value, { isPassword: this.props.isPassword });
    }

    updateValue(ev) {
        let value = ev.target.value;
        if (this.props.shouldTrim) {
            value = value.trim();
        }
        this.props.update(value);
    }
}

CharField.template = "web.CharField";
CharField.displayName = _lt("Text");
CharField.supportedTypes = ["char"];

CharField.extractProps = ({ attrs, field }) => {
    return {
        shouldTrim: field.trim && !archParseBoolean(attrs.password),
        maxLength: field.size,
        isPassword: archParseBoolean(attrs.password),
        placeholder: attrs.placeholder,
    };
};

registry.category("fields").add("char", CharField);

There are a few important things to notice:

• The CharField receives its (raw) value in props. It needs to format it before displaying it.

• It receives an update function in its props, which is used by the field to notify the owner of the state that the value of this field has been changed. Note that the field does not (and should not) maintain a local state with its value. Whenever the change has been applied, it will come back (possibly after an onchange) by the way of the props.

• It defines an extractProps function. This is a step that translates generic standard props, specific to a view, to specialized props, useful to the component. This allows the component to have a better API, and may make it so that it is reusable.

Fields have to be registered in the fields registry. Once it's done, they can be used in some views (namely: form, list, kanban) by using the widget attribute.

مثال

<field name="preview_moves" widget="account_resequence_widget"/>

1. An image_preview field

Each new order on the website will be created as an awesome_tshirt.order. This model has a image_url field (of type char), which is currently only visible as a string. We want to be able to see the image itself in the form view.

تمرین

1. Create a new ImagePreview component and register it in the proper registry. Use the CharField component in your template. You can use t-props to pass props received by ImagePreview to CharField. Update the arch of the form view to use your new field by setting the widget attribute.

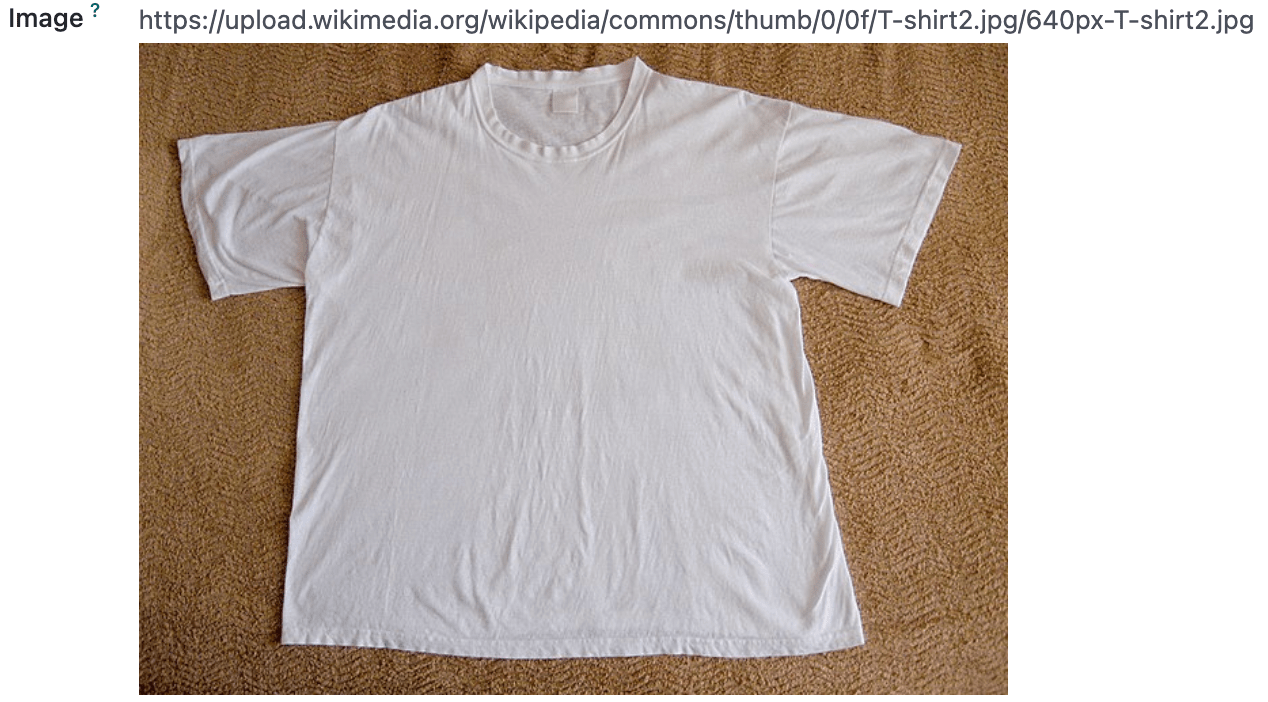

2. Change the code of the ImagePreview component so that the image is displayed below the URL.

3. When the field is readonly, only the image should be displayed and the URL should be hidden.

توجه

It is possible to solve this exercise by inheriting CharField, but the goal of this exercise is to create a field from scratch.

همچنین ببینید

Code: CharField

2. Improving the image_preview field

We want to improve the field of the previous task to help the staff recognize orders for which some action should be done.

تمرین

Display a warning "MISSING TSHIRT DESIGN" in red if there is no image URL specified on the order.

3. Customizing a field component

Let's see how to use inheritance to extend an existing component.

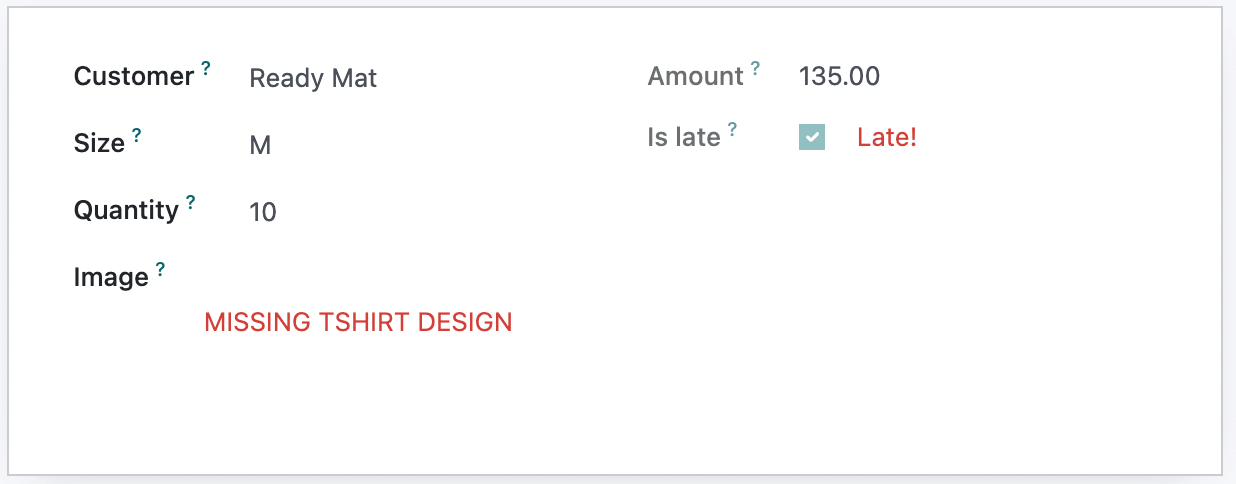

There is a is_late, readonly, boolean field on the order model. That would be useful information to see on the list/kanban/view. Then, let us say that we want to add a red word "Late!" next to it whenever it is set to true.

تمرین

1. Create a new LateOrderBoolean field inheriting from BooleanField. The template of LateOrderBoolean can also inherit from the BooleanField template.

2. Use it in the list/kanban/form view.

3. Modify it to add a red Late next to it, as requested.

همچنین ببینید

• Example: A field inheriting another

• Documentation on xpath

4. Message for some customers

Odoo form views support a widget API, which is like a field, but more generic. It is useful to insert arbitrary components in the form view. Let us see how we can use it.

تمرین

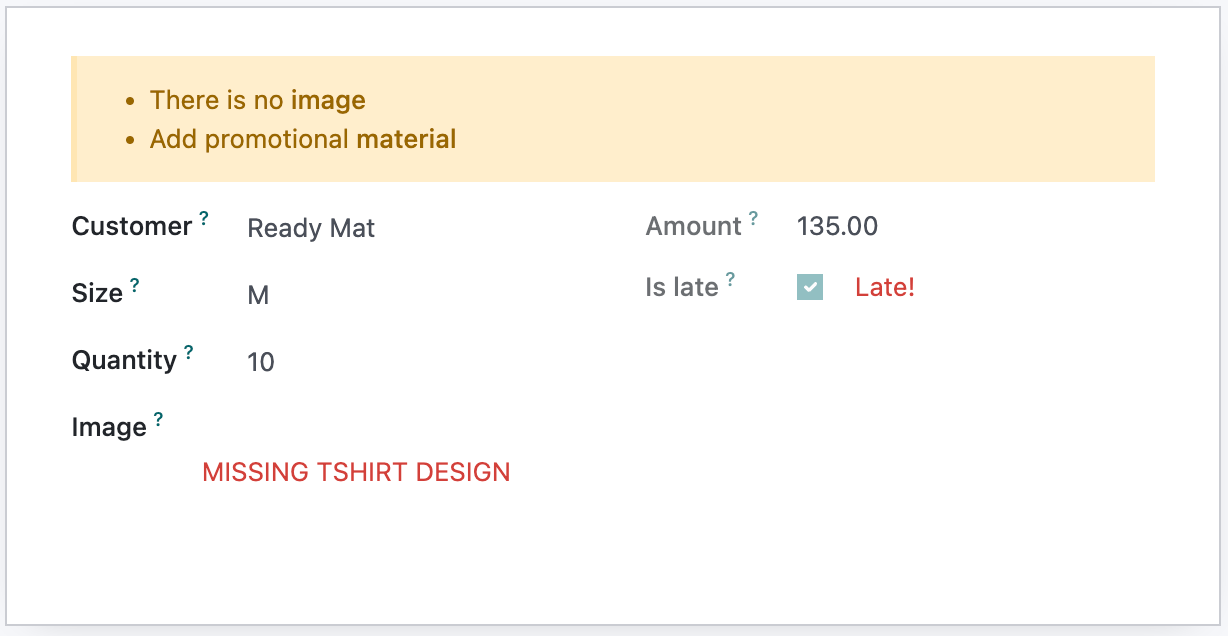

For a super efficient workflow, we would like to display an alert block with specific messages depending on some conditions:

• If the image_url field is not set, it should display "No image".

• If the amount of the order is higher than 100 euros, it should display "Add promotional material".

• Make sure that your widget is updated in real time.

نکته

Try to evaluate props.record in the Console tab of your browser's dev tools.

همچنین ببینید

• Example: Using the tag <widget> in a form view

• Example: Implementation of a widget

5. Use markup

Let’s see how we can display raw HTML in a template. The t-out directive can be used for that propose. Indeed, it generally acts like t-esc, unless the data has been marked explicitly with a markup function. In that case, its value is injected as HTML.

تمرین

1. Modify the previous exercise to put the image and material words in bold.

2. The warnings should be markuped, and the template should be modified to use t-out.

3. Import the markup function from Owl and, for each message, replace it with a call of the function with the message passed as argument.

توجه

This is an example of a safe use of t-out, since the string is static.

6. Add buttons in the control panel

Views are among the most important components in Odoo: they allow users to interact with their data. Let us discuss how Odoo views are designed.

The power of Odoo views is that they declare how a particular screen should work with an XML document (usually named arch, short for architecture). This description can be extended/modified by xpaths serverside. Then, the browser loads that document, parses it (fancy word to say that it extracts the useful information), and then represents the data accordingly.

مثال

The arch document is view specific. Here is how a graph view or a calendar view could be defined:

<graph string="Invoices Analysis" type="line" sample="1">
    <field name="product_categ_id"/>
    <field name="price_subtotal" type="measure"/>
</graph>

<calendar string="Leads Generation" create="0" mode="month" date_start="activity_date_deadline" color="user_id" hide_time="true" event_limit="5">
    <field name="expected_revenue"/>
    <field name="partner_id" avatar_field="avatar_128"/>
    <field name="user_id" filters="1" invisible="1"/>
</calendar>

A view is defined in the view registry by an object with a few specific keys.

• type: The (base) type of a view (for example, form, list...).

• display_name: What should be displayed in the tooltip in the view switcher.

• icon: Which icon to use in the view switcher.

• multiRecord: Whether the view is supposed to manage a single record or a set of records.

• Controller: The component that will be used to render the view (the most important information).

مثال

Here is a minimal Hello view, which does not display anything:

/** @odoo-module */

import { registry } from "@web/core/registry";

export const helloView = {
   type: "hello",
   display_name: "Hello",
   icon: "fa fa-picture-o",
   multiRecord: true,
   Controller: Component,
};

registry.category("views").add("hello", helloView);

Most (or all?) Odoo views share a common architecture:

The view description can define a props function, which receives the standard props, and computes the base props of the concrete view. The props function is executed only once, and can be thought of as being some kind of factory. It is useful to parse the arch XML document, and to allow the view to be parameterized (for example, it can return a Renderer component that will be used as Renderer). Then, it is easy to customize the specific renderer used by a sub view.

The props will be extended before being given to the Controller. In particular, the search props (domain/context/groupby) will be added.

Finally, the root component, commonly called the Controller, coordinates everything. It uses the generic Layout component (to add a control panel), instantiates a Model, and uses a Renderer component in the Layout default slot. The Model is tasked with loading and updating data, and the Renderer is supposed to handle all rendering work, along with all user interactions.

In practice, once the t-shirt order is printed, we need to print a label to put on the package. To do that, let us add a button in the order's form view's control panel, which will call a model method.

There is a service dedicated to calling models methods: orm_service, located in core/orm_service.js. It provides a way to call common model methods, as well as a generic call(model, method, args, kwargs) method.

مثال

setup() {
    this.orm = useService("orm");
    onWillStart(async () => {
        // will read the fields 'id' and 'descr' from the record with id=3 of my.model
        const data = await this.orm.read("my.model", [3], ["id", "descr"]);
        // ...
    });
}

تمرین

1. Create a customized form view extending the web form view and register it as awesome_tshirt.order_form_view.

2. Add a js_class="awesome_tshirt.order_form_view" attribute to the arch of the form view so that Odoo will load it.

3. Create a new template inheriting from the form controller template and add a "Print Label" button after the "New" button.

4. Clicking on this button should call the method print_label from the model awesome_tshirt.order with the proper id.

   توجه

   print_label is a mock method; it only displays a message in the logs.

5. The button should not be disabled if the current order is in create mode (i.e., it does not exist yet).

   نکته

   Log this.props.resId and this.model.root.resId and compare the two values before and after entering create mode.

6. The button should be displayed as a primary button if the customer is properly set and if the task stage is printed. Otherwise, it should be displayed as a secondary button.

7. Bonus point: clicking twice on the button should not trigger 2 RPCs.

همچنین ببینید

• Example: Extending a view (JS)

• Example: Extending a view (XML)

• Example: Using a js_class attribute

• Code: orm service

• Example: Using the orm service

• Code: useDebounced hook

7. Auto-reload the kanban view

Bafien is upset: he wants to see the kanban view of the tshirt orders on his external monitor, but the view needs to be up-to-date. He is tired of clicking on the refresh icon every 30s, so he tasked you to find a way to do it automatically.

Just like the previous exercise, that kind of customization requires creating a new JavaScript view.

تمرین

1. Extend the kanban view/controller to reload its data every minute.

2. Register it in the view registry, under awesome_tshirt.autoreloadkanban.

3. Use it in the arch of the kanban view (with the js_class attribute).

مهم

If you use setInterval or something similar, make sure that it is properly canceled when your component is unmounted. Otherwise, you will introduce a memory leak.
